1. 规格 FEATURE
— 型号: KYTO2800A
Model No.: KYTO2800A
— 工作电压: 2.4V ~ 3.0V
Operating voltage: 2.4V ~ 3.0V
— 敏感度有效距离: 1米
Sensitivity: 1 meter
— 接收频率: 5.3KHz
Receiving frequency: 5.3KHz
— 启用时间: 50us
Set up time: 50us
— 待机电流: <1uA
Current consumption (Standby): <1uA
— 工作电流: <120uA
Current consumption (Operating): <120uA
— 工作温度: 0°C ~ +50°C
Operating temperature: 0°C ~ +50°C
2. 功能 FUNCTION
— 使用方便
Convenient to use
— 内置陶瓷天线
Built-in ferrite antenna
— 高灵敏度
High sensitivity
— 符号ROHS标准
Fully ROHS compliant

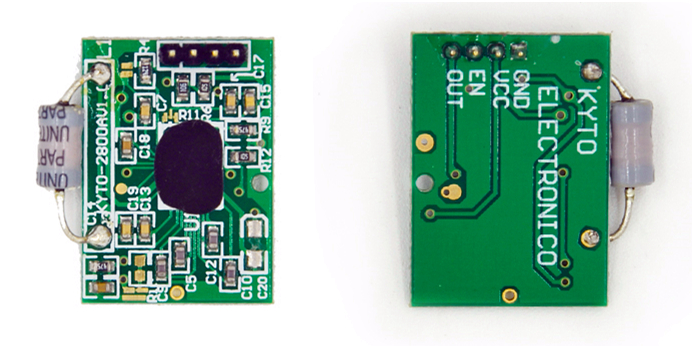

— 应用: 这是一个心率信号接收模块, 与HRM-2800B心率信号发射胸带配套使用
Application: It is a heart rate receiver module, used together with HRM-2800B of heart rate sender chest belt
3. 工厂实貌 FACTORY PICTURES
